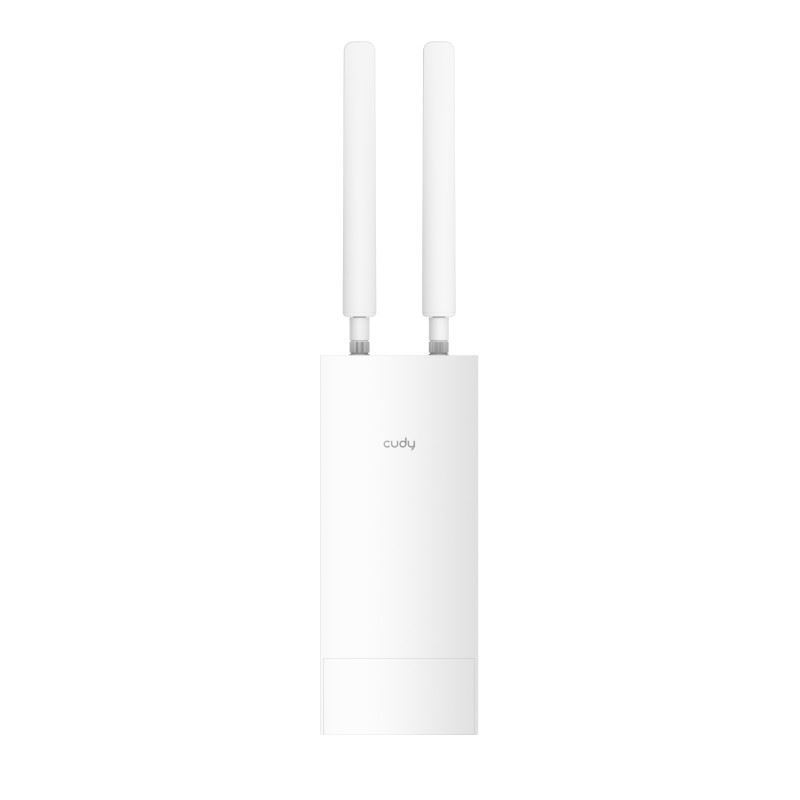

Cudy AC1200 WiFi 4G LTE Cat4 Outdoor Router LT500 OUTDOOR

BRAND NEW - FACTORY SEALEDCUDY WARRANTYNETWORKING

Cudy AC1200 WiFi 4G LTE Cat4 Outdoor Router LT500 OUTDOOR

The LT500 Outdoor is the perfect solution for turning 4G into speedy Wi-Fi, allowing users to enjoy the convenience of Cat. 4 access anywhere. With maximum download speeds of 150Mbps and upload speeds of 50Mbps, this router provides a fast 4G connection to over 30 devices simultaneously with minimal latency. MU-MIMO and dual-band features further enhance the performance of the AC1200 Wi-Fi, ensuring users have a reliable connection with satisfactory speed and coverage.

This Cudy 4G Outdoor Router is designed to provide strong Wi-Fi coverage support by using Beamforming technology and two built-in antennas. Tests have shown that this product is capable of delivering reliable performance in four different scenarios. The router is further expandable in order to create a Mesh network and extend the Wi-Fi coverage into larger areas. This makes it an ideal product for anyone who needs to cover large distances with top-notch performance.

This Adapter simplifies the process of installing Wi-Fi anywhere. It comes with an adapter that allows you to plug an Ethernet cable into it and extend your network reach up to 100 m without needing an extra cable. You can also connect an AP to the adapter to equip your space with a better Wi-Fi signal, though an AP must be purchased separately. Additionally, the default 4G antennas are as sensitive as a standard phone's antennas. But if needed, they can be replaced with customized ones via the SMA connectors.

This kit has everything you need to complete a successful installation, including hardware for both wall mounting and pole mounting. With its durable and strong construction, this kit is designed to help you mount your item securely and safely in a variety of locations. It's an easy and efficient way to get the job done quickly without compromising on quality.

FEATURES:

• LTE FDD/TDD Cat 4
• AC1200 Wi-Fi
• 1x10/100Mbps WAN/LAN
• Nano SIM Slot
• 24V Passive PoE
• 2x Internal Wi-Fi Antennas + 2 x Detachable 4G Antennas
• VPN & DDNS
• IP65 Water-Proof

SPECIFICATIONS:

• Model LT500-Outdoor
• LTE Module Model EU Version: EC200A, LTE-FDD: B1/B3/B5/B7/B8/B20/B28, LTE-TDD: B38/B40/B41, WCDMA: B1/B5/B8, GSM/EDGE: B3/B8
• LTE Module Model US Version: EC25-AFXD, LTE-FDD: B2/B4/B5/B12/B13/B14/B66/B71, WCDMA: B2/B4/B5
• Flash: 128 Mbit (16 MB) SPI Flash
• DDR: 1 Gbit (128 MB) DDR
• Interface: 1× 10/100 Mbps WAN/LAN RJ45 Port (24V/0.5A passive PoE, 4/5+,7/8-), 1× Reset Button, 1× Nano SIM Slot
• LED: System/Internet/Ethernet/2.4G WiFi/5GHz WiFi/Signal Strength
• Antenna: 2× Internal Wi-Fi Antennas, 2× External Detachable 4G Antennas
• Wireless Standards: IEEE 802.11 ac/a/n/b/g
• Frequency: 2.4GHz, 5GHz
• Signal Rate: 867 Mbps (5 GHz), 300 Mbps (2.4 GHz), Compatible with 802.11ac/a/b/g/n Wi-Fi standards
• Transmit Power CE: <20dBm, FCC:<30dBm
• Wireless Modes Enable/Disable Wireless Radio, WMM
• Wireless Security WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
• WAN Type: 4G/Dynamic IP/Static IP/PPPoE
• DHCP: Server, DHCP Client List, Address Reservation
• Dynamic DNS: Compatible with 15 more DDNS providers
• NAT: Port Forwarding, Port Triggering, UPnP, DMZ
• VPN Server & Client: PPTP/L2TP/OpenVPN/WireGuard/IPSec/Zerotier
• CWMP Protocol: TR069 / TR098 / TR111 / TR181
• ACS Server Compatibility: GenieACS, OpenACS
• Management: Access Control, Local Management, Remote Management, Wake on LAN
• TTL: Extend/Spoof/Custom
• DNS: Cloudflare/Google/Custom
• Internet Protocols: IPv4 / IPv6
• IPv6: Relay, Dynamic(SLAAC/DHCPv6), Static (Fixed IP), Passthrough, MAP-E (Dual-stack), DS-Lite (Dual-stack)
• SMS: Send/Receive
• 4G Band Lock: Support

WHAT'S IN THE BOX:

• Cudy LT500 4G LTE Outdoor Wi-Fi Router - White x1
• PoE Adapter x1
• Ethernet Cable x1
• WiFi Antenna x2
• Pole Installation Accessory
• User Manual x1
